ORCA 35W-180W

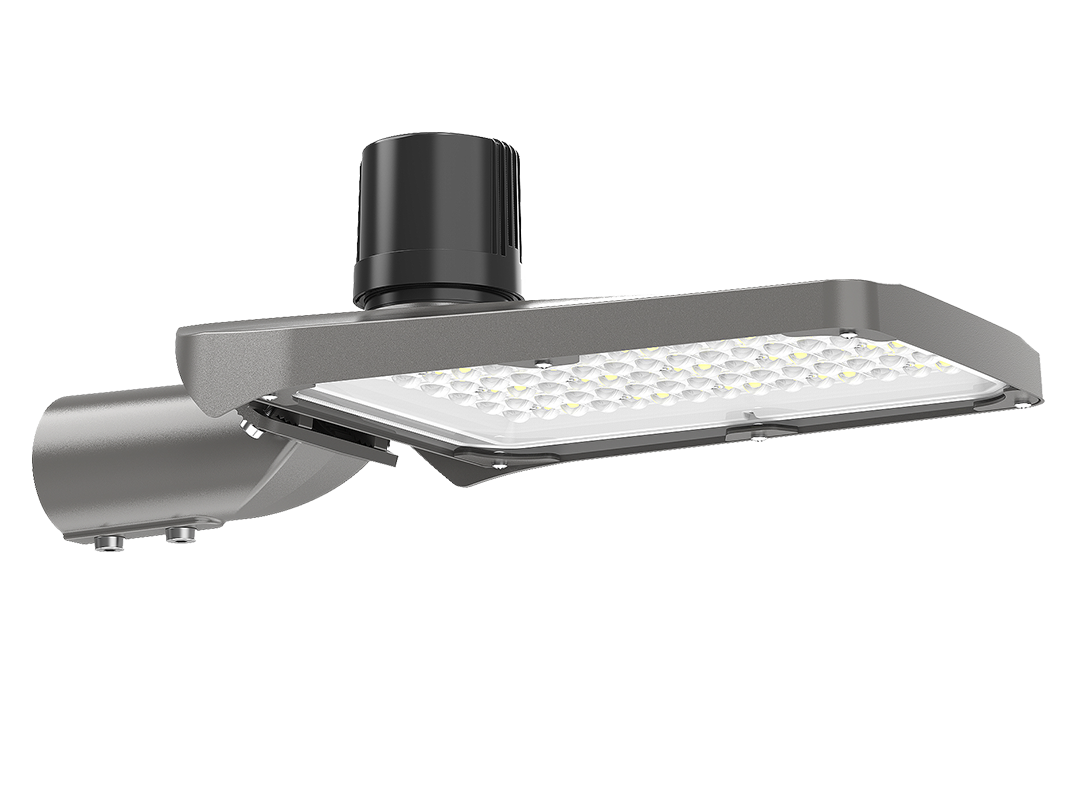

ORCA Series LED street lights are originally innovative design, Plug and play LED driver fixed on the back of LED street light has a big power range, from 35Watt to 180Watt. The precise optics combined with high efficient LED chips bring out 180lm/W efficiency and high uniformity on the road.

Rugged Design
High brightness - 180lm/W
High-Efficiency
Heat Dissipation Design
Tool-free Maintenance
6KV Surge protection

SEND INQUIRY

Features

Parameters

Download

Input Voltage: AC100V-277V 50/60HZ
LED Brand: EMC3030
CRI: ＞70
Operating Temp: -40℃ to 55℃
Power Factor: 12Vdc auxiliary
Power Factor: >0.95
Beam Angle: TYPE2/TYPE3/TYPE4
Sensor: Motion Sensor；dayight Sensor
Warranty : 5 yrs warranty
Dimming Solutions: 0-10v Dimming, Time dimming, NFC
IP Rate: IP66
Housing: Aluminium , Optional LM6 aluminium
Surge Protection: 6KV
CCT:3000K 4000K 5000K 5700K 6500K
Sensor: Daylight Sensor

Model	35W	50W	75W	100W	150W	180W
Power	35W	50W	75W	100W	150W	180W
Lumen output	6300lm	9000lm	13500lm	18000lm	27000lm	36000lm
