JAGUAR SHOEBOX 150W

As an important member of Jaguar Family, JAGUAR SHOEBOX series have strict standards on obtrusive light control on sports lighting.  More powerful, premium grade components and high strength housing can offer a higher lumen output for better brightness. And also with other competitive features as below:



  • Patent SOGA Streamlined Design

  • High-quality Die-casting aluminium housing

  • Vertically Adjustable Modular Design

  • Smaller Size and Lighter Weight

  • Anti-Glare & Obtrusive Light Control

  • Easy Aiming Check One-size Screws for all adjustment

  • Tool-free driver box

  • Quick Connected Electrical Box

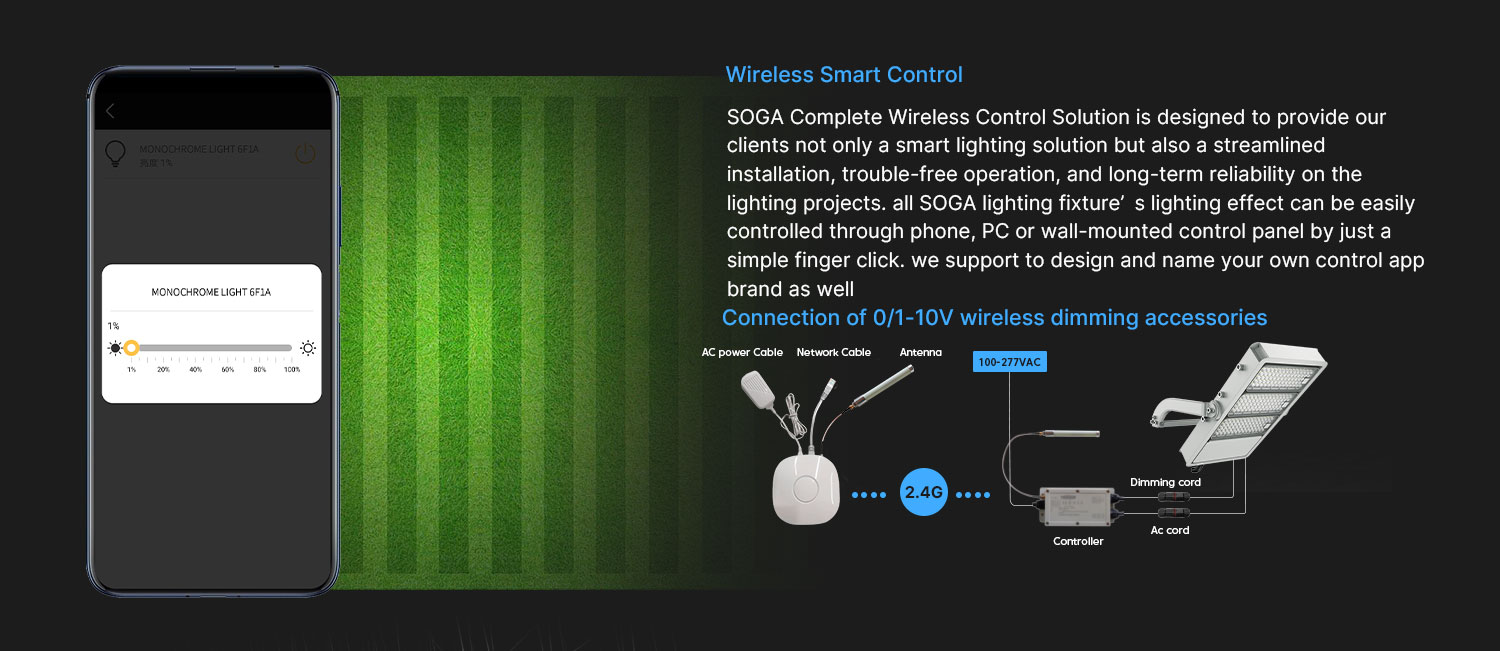

  • Wireless Smart Control

  • Wireless or DMX Entertainment System



SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC90-305V/AC108-528V
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Aluminum
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO,Zigbee
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,Asymmetric 60°,Asymmetric 60W
  • IK Rate: IK08
  • Optional Accessories: SPD,Zigbee Gateway, Zigbee Controller, Zigbee Wall Switch
  • L70 Hour: >60,000 H
  • Wattage/module: Symmetrical:150W
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
Model SG-JRS-150W SG-JRS-150W SG-JRS-300W SG-JRS-300W SG-JRS-450W SG-JRS450W
WATTAGE 150W 150W 300W 300W 450W 450W
MODEL QTY 1 1 2 2 3 3
LUMEN EFFICIENCY 145LM/W 170LM/W 145LM/W 170LM/W 145LM/W 170LM/W
LUMNE OUTPUT 21750LM 25500LM 43500LM 45000LM 65250LM 76500LM
