LUNA SERIES 300W

With the classical appearance and high lumen output，Luna Series is born to meet the variable needs of new and retrofit applications at professional and collegiate level outdoor stadiums. At the meantime, Luna series also has a outstanding performance on glare control, and lighting uniformity, energy saving, wireless smart control etc which can perfectly meet the stringent performance requirements of fans, players, and broadcast.

High lumen output
Powder-coated aluminum housing
10KV Current Surge
Class 17 wind load resistance
Smart Wireless control
Free Dialux Simulations
Detachable Driver BOX

SEND INQUIRY

Features

Parameters

Download

Classical Round Shape

Classical round shape, easier be accepted by end clients

Light Spill Cover

To control the light pollution better

especially needed when lamps are applied near the airport etc.

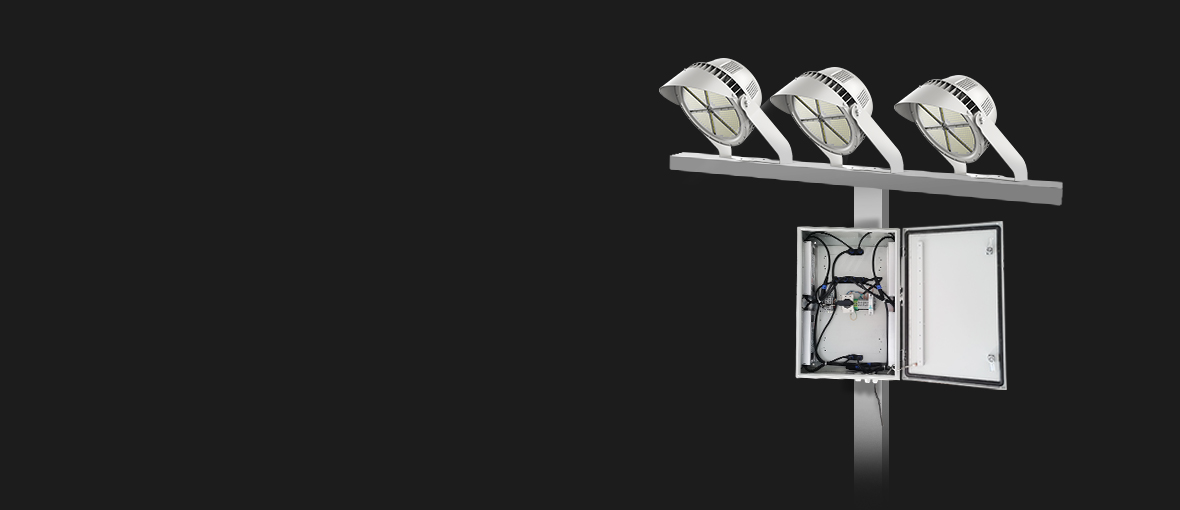

Detachable Driver

Drivers can be separated installed on the bottom of pole

easy for maintenance

Input Voltage: AC90-305V/AC108-528V
LED Brand: Luxeon 5050
Housing Color: Gray
CRI: 70 80 90
Bracket: Iron or Stainless Steel
Operating Temp: -40℃ to 55℃
Driver: Meanwell, Sosen, Inventronics
Power Factor: >0.95
Dimming Solutions: 0-10v Dimming, DALI, CLO
Warranty : 5 yrs warranty
CCT: 3000K 4000K 5000K 5700K 6500K
IP Rate: IP65
Wireless Control: Available
Driver Box: Detachable
Beam Angle: 30°, 60°,90°
L70 Hour: >100,000 H
Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)

Model	SG-LUNA-300W	SG-LUNA-400W	SG-LUNA-600W	SG-LUNA-700W	SG-LUNA-800W
Lm/w	150LM/W	150LM/W	150LM/W	150LM/W	150LM/W
Power	300W	400W	600W	700W	800W
Lumen Output	45000LM	60000LM	90000LM	105000LM	120000LM
