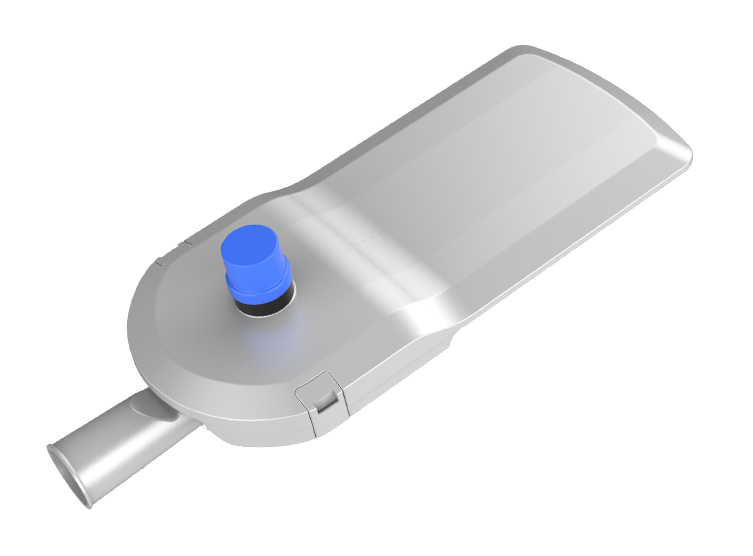

DELPHINUS SERIES 200W

DELPHINUS Series is the best alternative for traditional street and area lighting with quick payback, improved performance and preventing light pollution. This fixture is easy in installation, from 50 wattage to 200 wattage and also with other competitive features as below:





Powder-coated aluminum housing

Tool free access to LED driver

Protection switch connector

IP66 (EN60529 compliant) rated water-proof

Optional photocell daylight sensor

Smart Wireless control

Free Dialux Simulations


SEND INQUIRY
Features
Parameters
Download
  • Input Voltage: AC200-240V,50/60HZ
  • LED Brand: SMD5050
  • CRI: 70 80 90
  • Operating Temp: -40℃ to 55℃
  • Driver: Sosen
  • Power Factor: >0.95
  • Beam Angle: 155°*80°
  • Sensor: Motion Sensor;dayight Sensor
  • Warranty : 5 yrs warranty
  • Dimming Solutions: 0-10v Dimming, DALI
  • IP Rate: IP66
  • Housing: Aluminum
  • Surge Protection: 10KV
  • L90 Hour: >100,000 H
  • CCT:4000K
Model SG-DPH-50W SG-DPH-70W SG-DPH-100W SG-DPH-120W SG-DPH-150W SG-DPH-200W
Power 50W 70W 100W 120W 150W 200W
Lumen output 7500lm 10500lm 15000lm 18000LM 22500LM 30000LM
