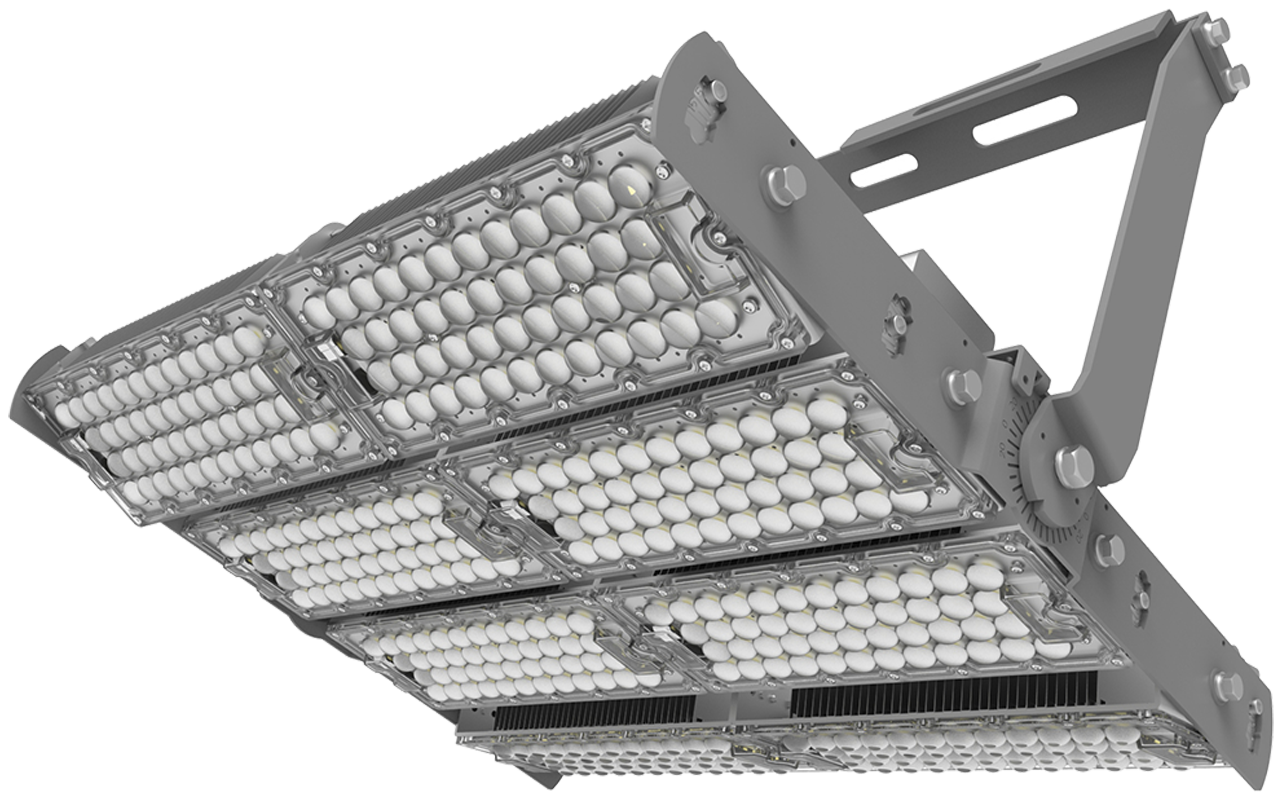

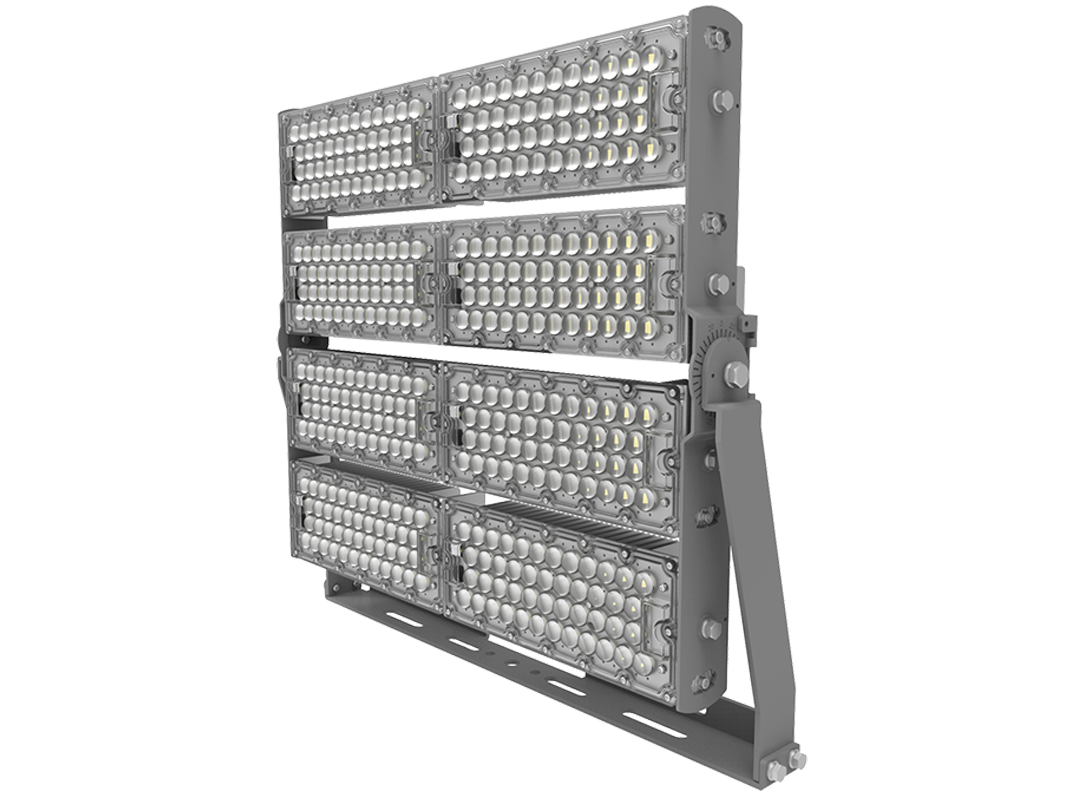

FOCUS G2 960W

G2 series are with the same light module as Hawk series, but into different structure to cover more general outdoor lighting and industrial lighting applications. One is enough for most of your lighting projects!

From 100W to 1440W
Light weight with fin-style Aluminum heatsink

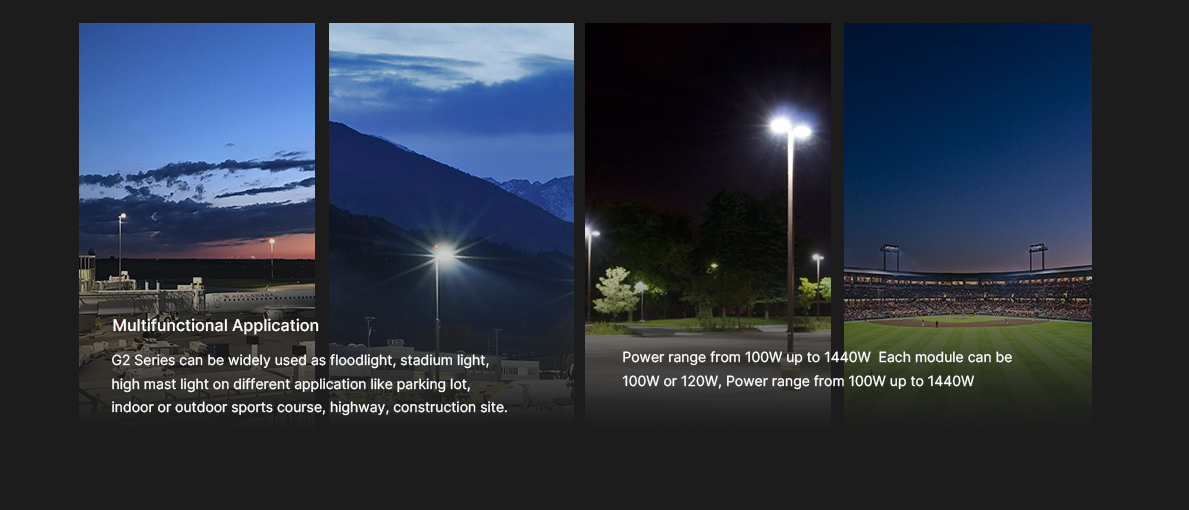

Multifunctional lighting application

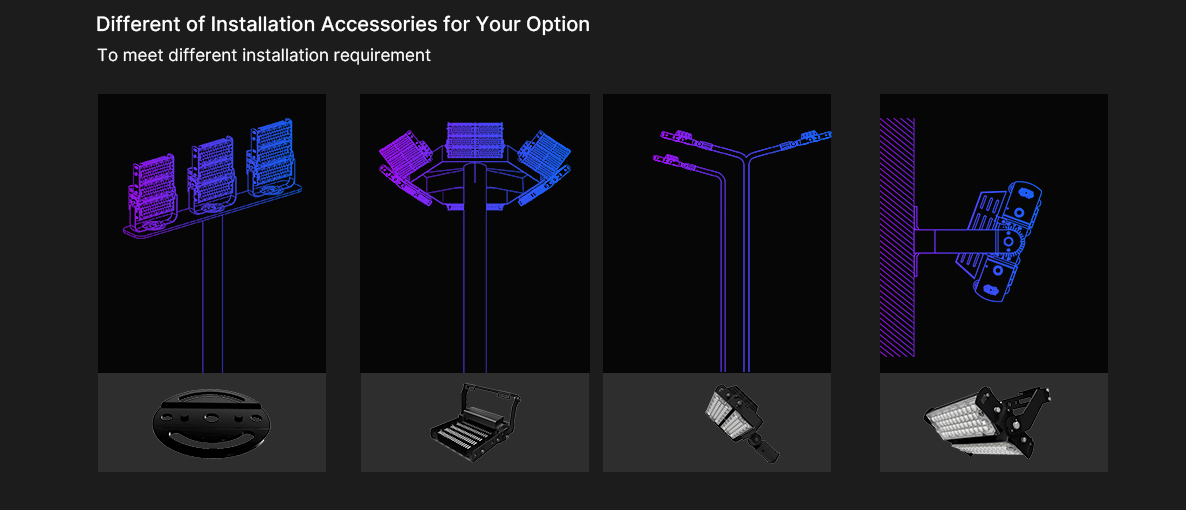

Different brackets for different installation ways (such as poles or wall mounted)

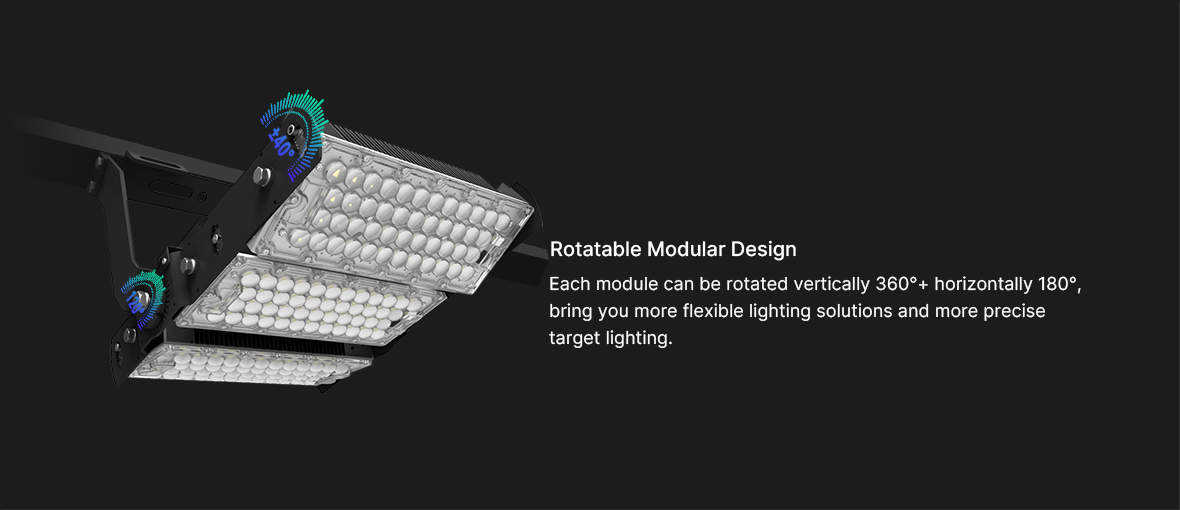

More uniform lighting with the rotatable modular design
Glare Control with light spill cover
Free Dialux Simulations

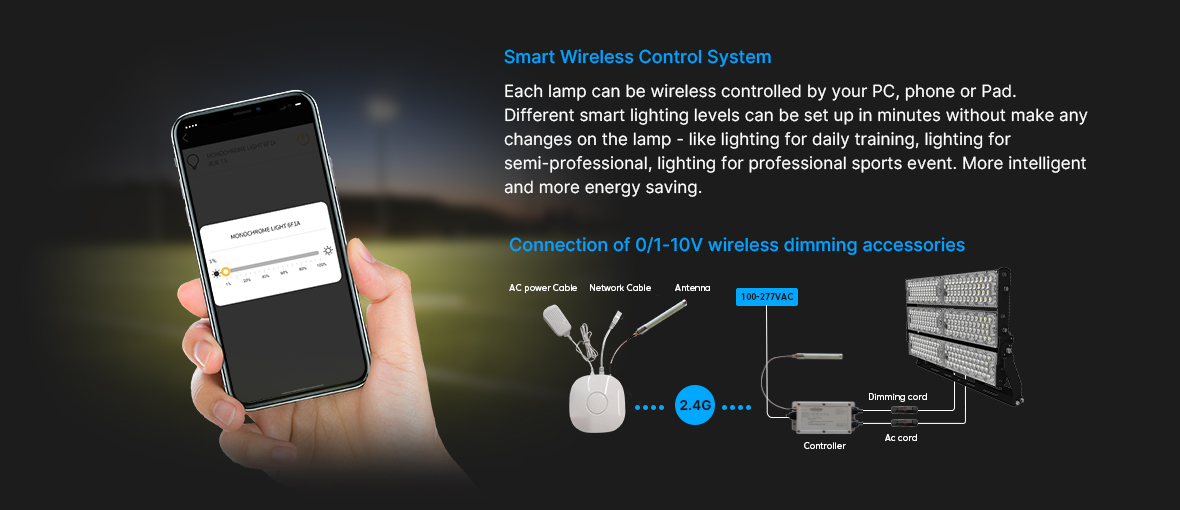

Smart Wireless Control

SEND INQUIRY

Features

Parameters

Download

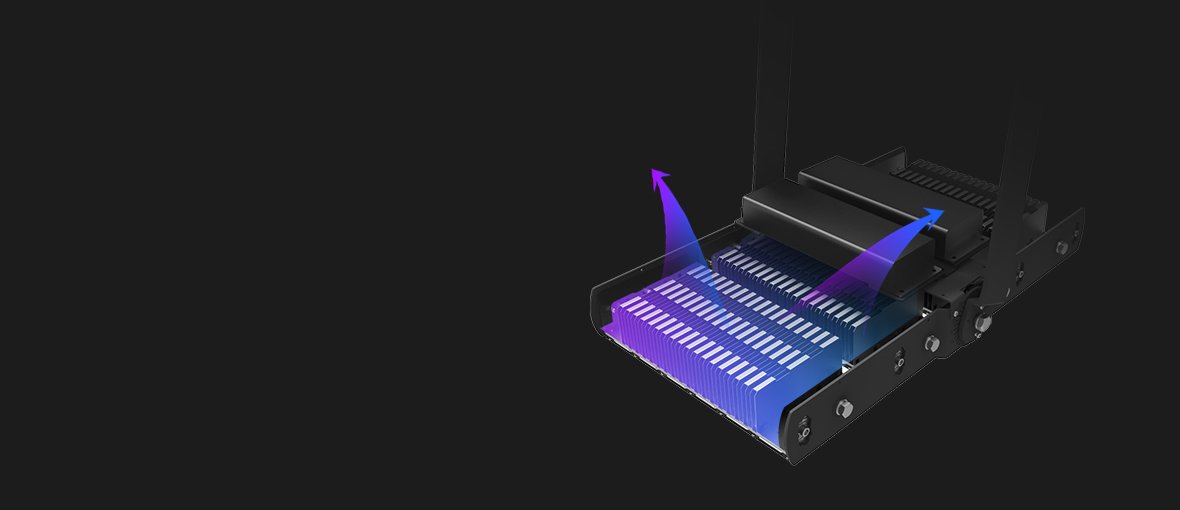

Folded Finned Style Heatsink

Great performance on heat dissipation. The air going through will bring the heat out easily, ensure the long lifespan of the light fixture.

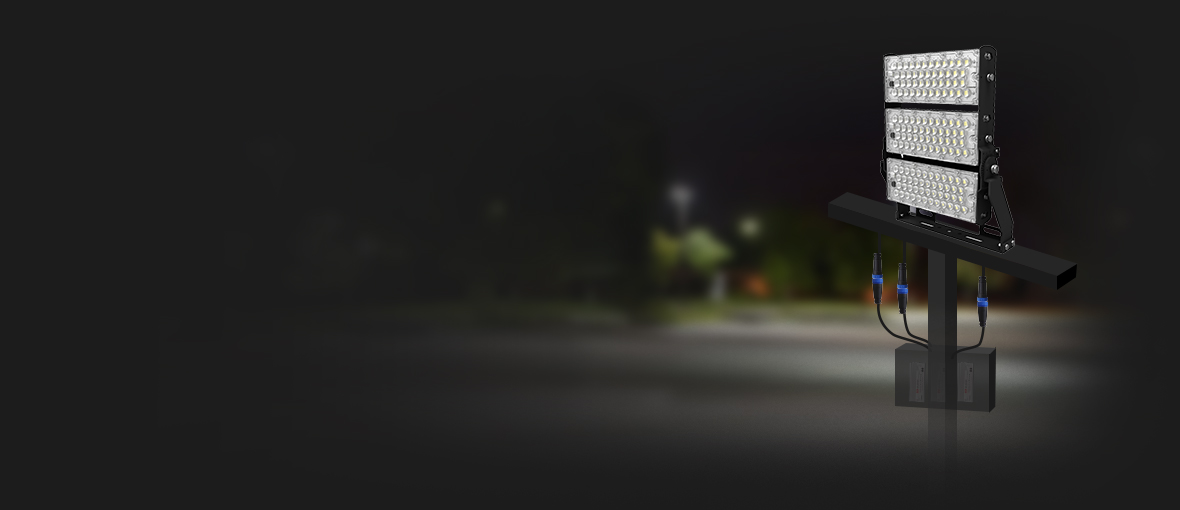

Detachable Drivers with SOGA Plug and Play Connecting System

Driver can be installed under the pole, which can be quick connected with the lamp body by SOGA Plug and Play connecting cable.

Input Voltage: AC90-305V/AC108-528V
LED Brand: Lumileds 5050
Housing: Aluminum
CRI: 70 80 90
Bracket: Iron or Stainless Steel
Operating Temp: -40℃ to 55℃
Driver: Meanwell, Sosen, Inventronics
Power Factor: >0.95
Dimming Solutions: 0-10v Dimming, DALI, CLO
Warranty : 5 yrs warranty
CCT: 3000K 4000K 5000K 5700K 6500K
Housing color: Gray or other customized color
IP Rate: IP65
Wireless Control: Available
Driver Box: Detachable
Beam Angle: 20°,40°, 60°,90°,h140*v100
L70 Hour: >60,000 H
Wattage/module: 100w or 120w
Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)

Model	SG-G2-120W	SG-G2-240W	SG-G2-360W	SG-G2-480W	SG-G2-720W	SG-G2-960W
Model Qty	1	2	3	4	6	8
Power	120W	240W	360W	480W	720W	960W
Lumen Output	18000LM	36000LM	54000LM	72000LM	108000LM	144000LM
