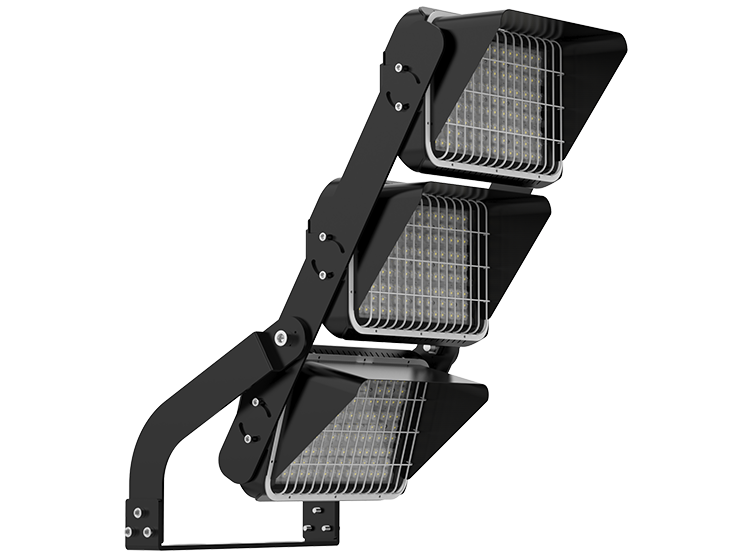

BARRETT H SERIES 750W

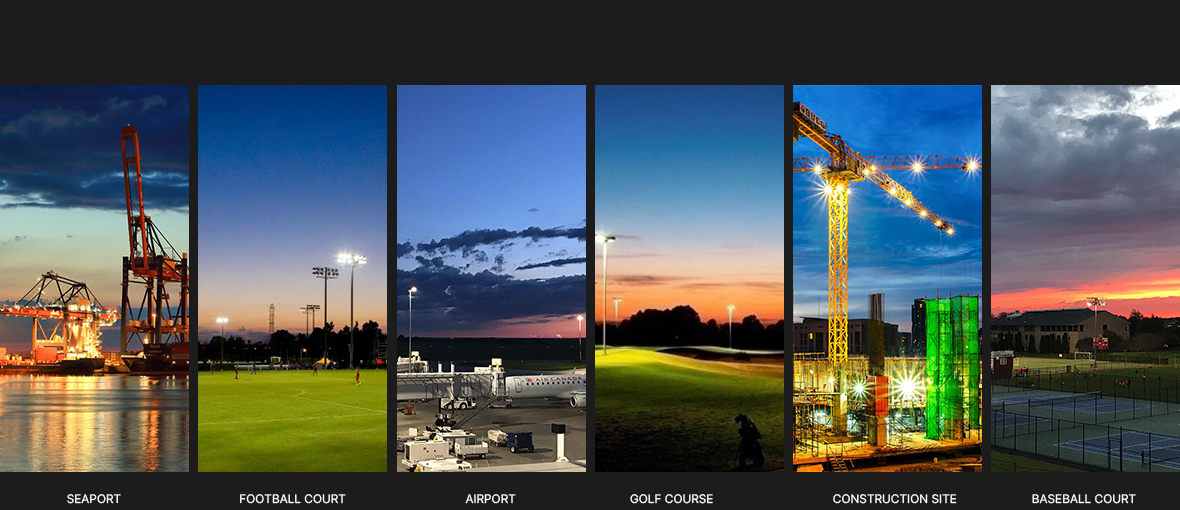

Compare with Barrett E and Y series, H series are with even wider range of applications. Except the sports lighting application, it is also the perfect option for Construction site, Airport, Seaport, Public Square etc.



  • From 500W to 1800W

  • Precise target lighting with the rotatable modular design

  • Glare Control with light spill cover

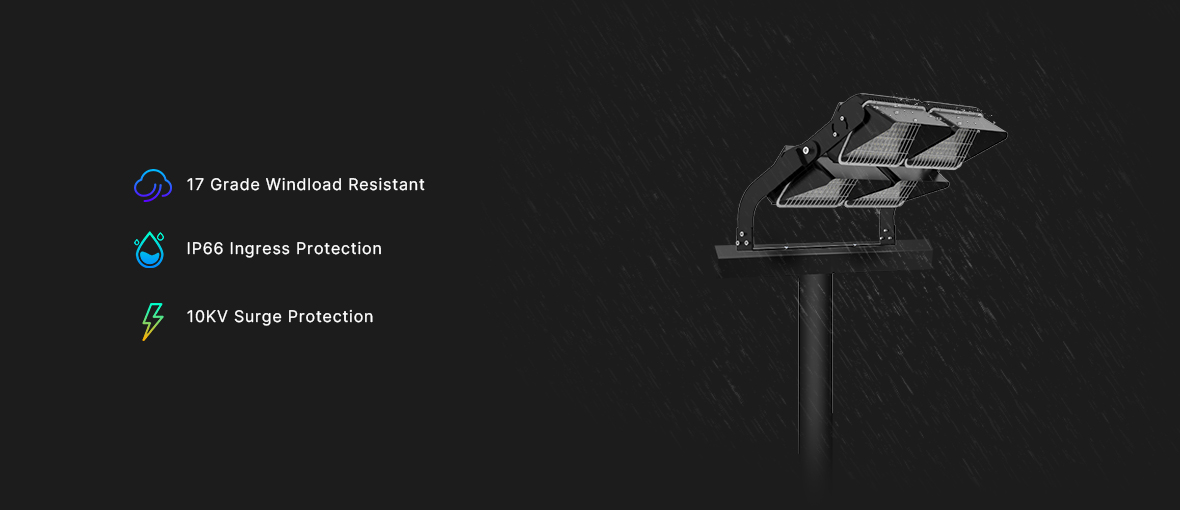

  • Class 17 wind load resistance

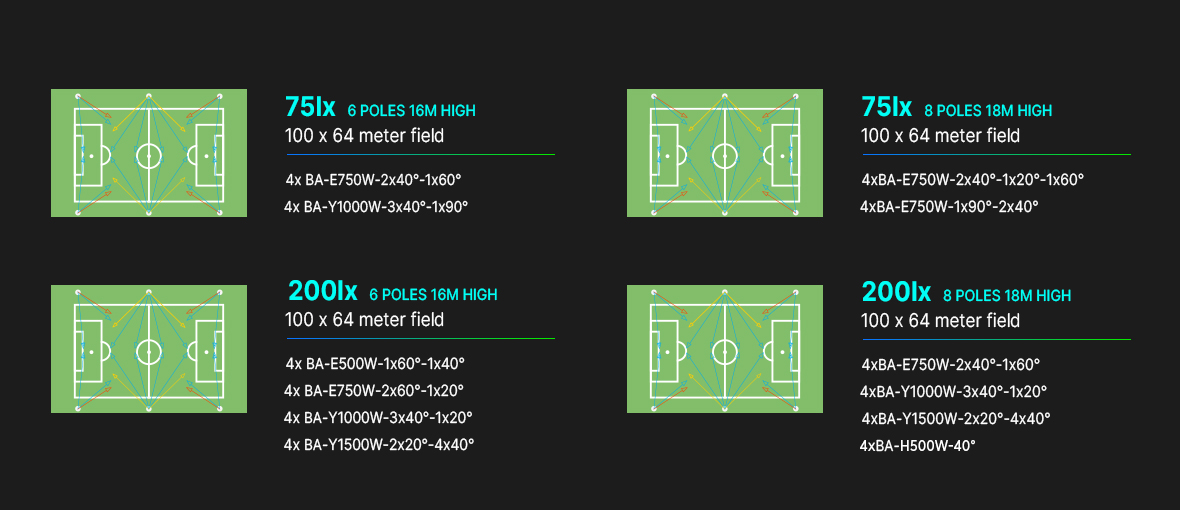

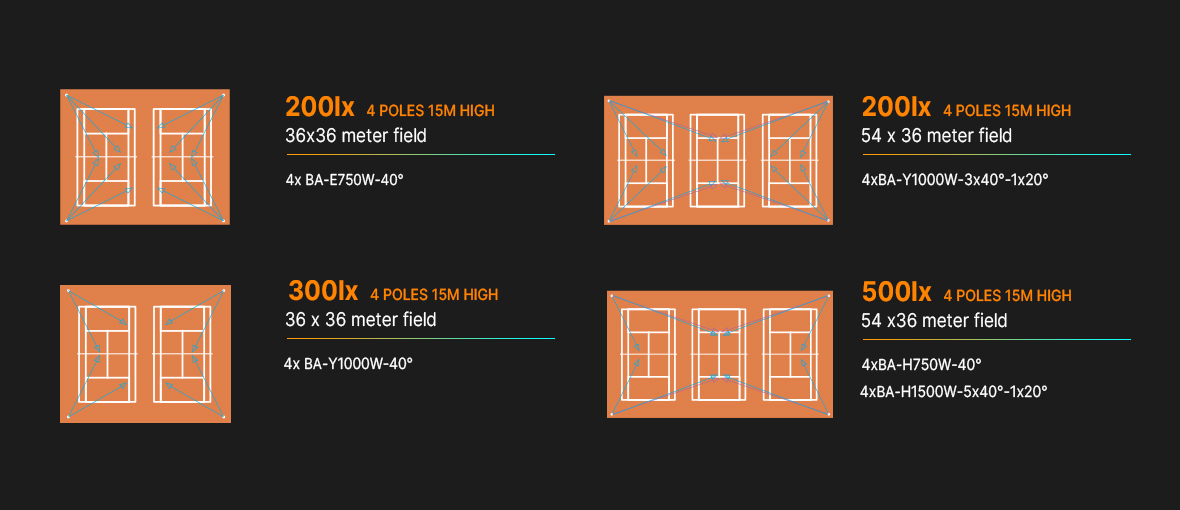

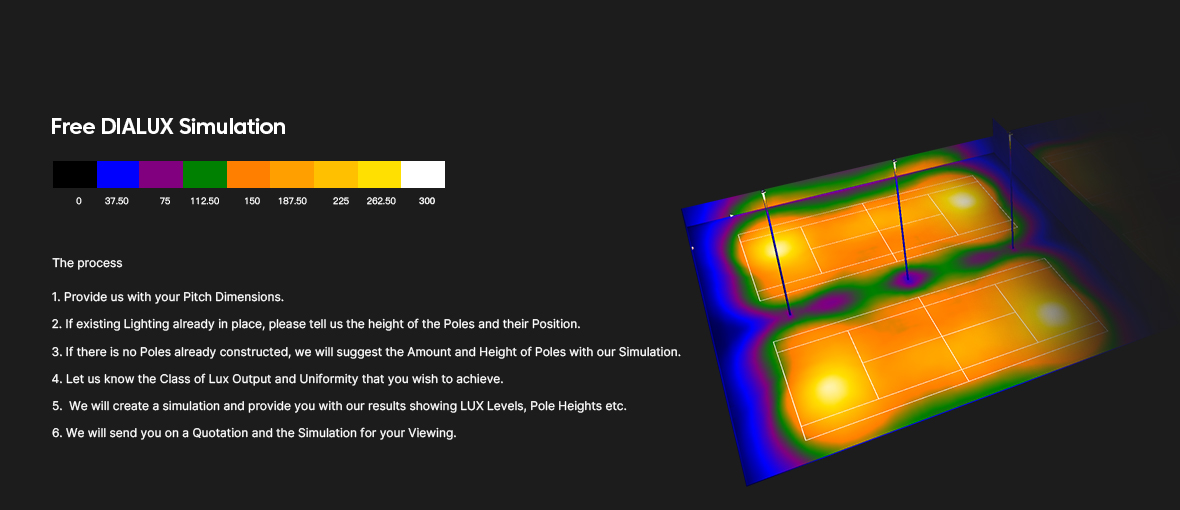

  • Free Dialux Simulation

  • Broadcast standard TLCI＞90

  • No exposed electric wire

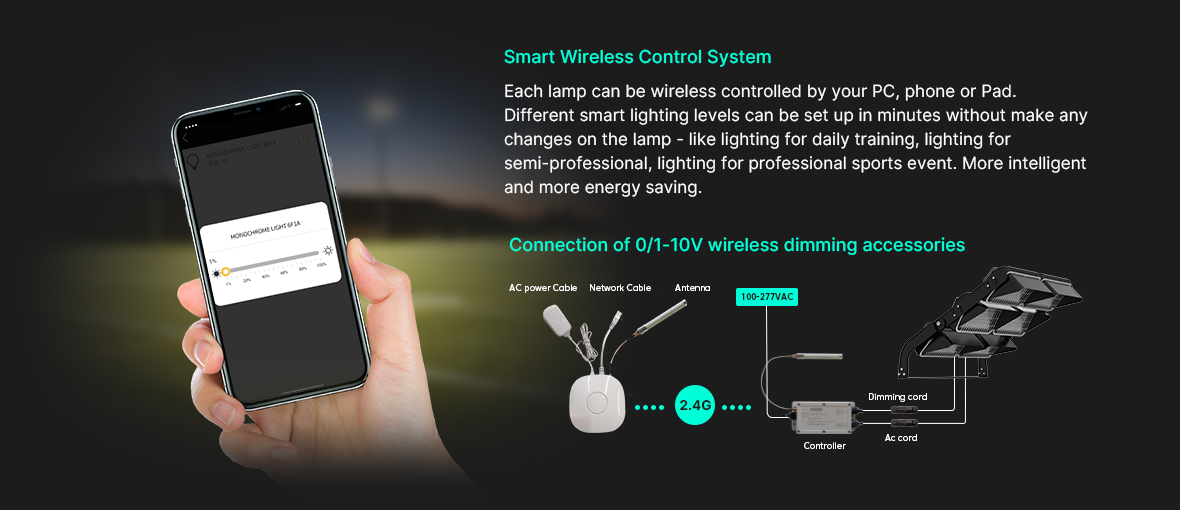

  • Wireless Control

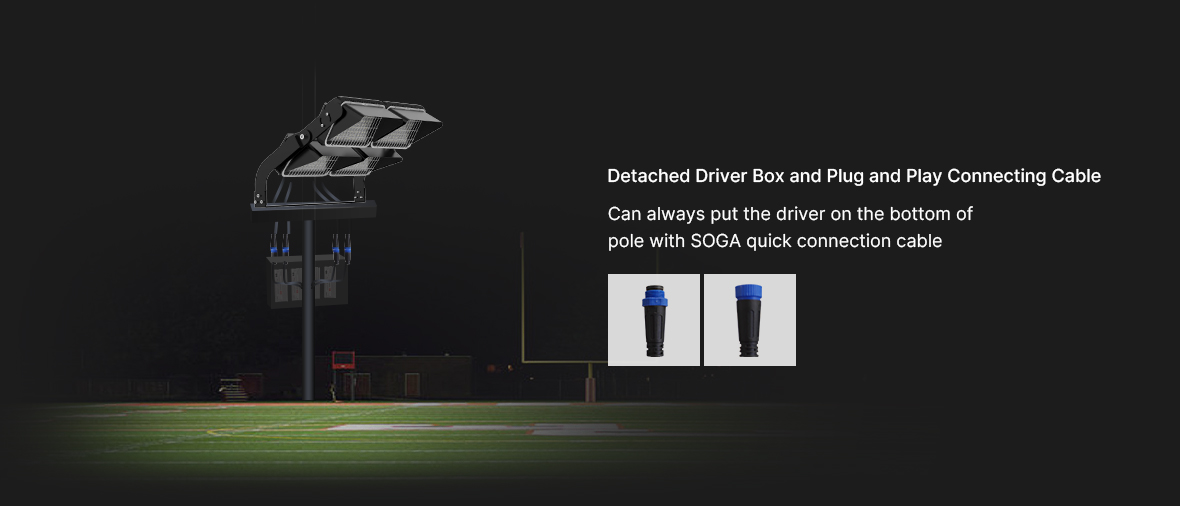

  • Detachable driver box

  • Quick connection plug



SEND INQUIRY
Features
Parameters
Download

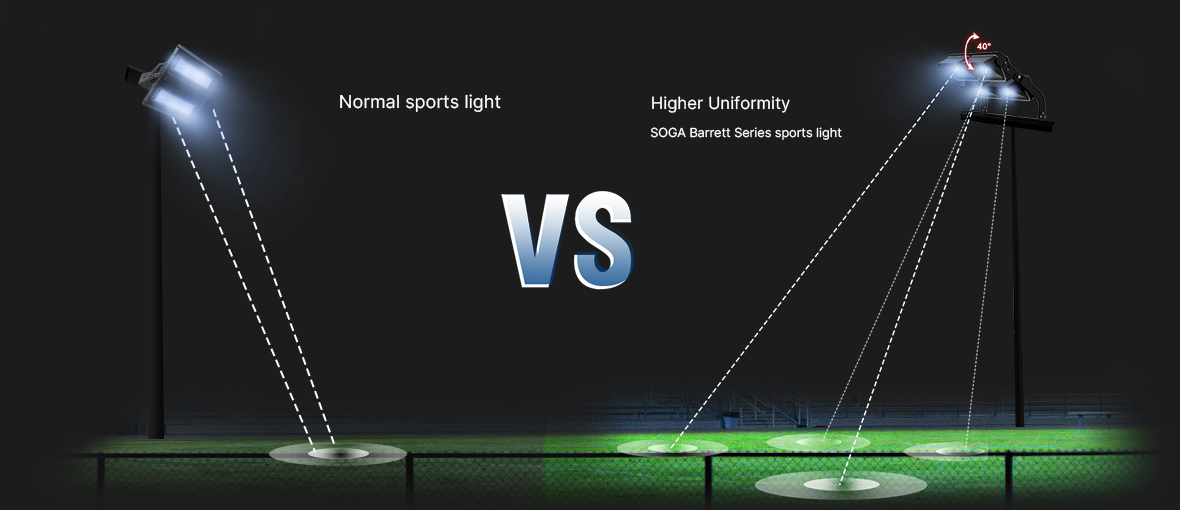

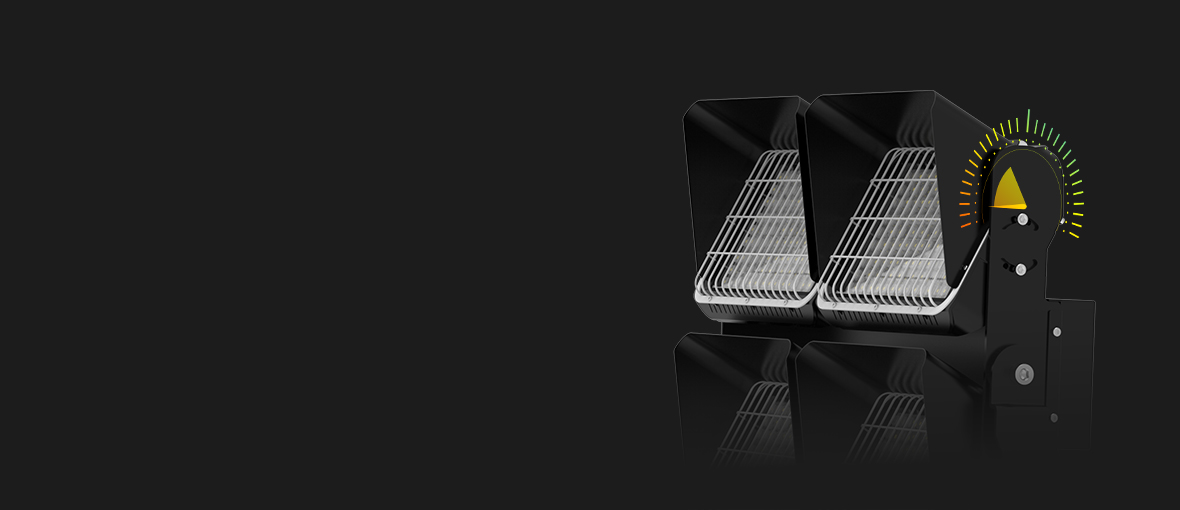

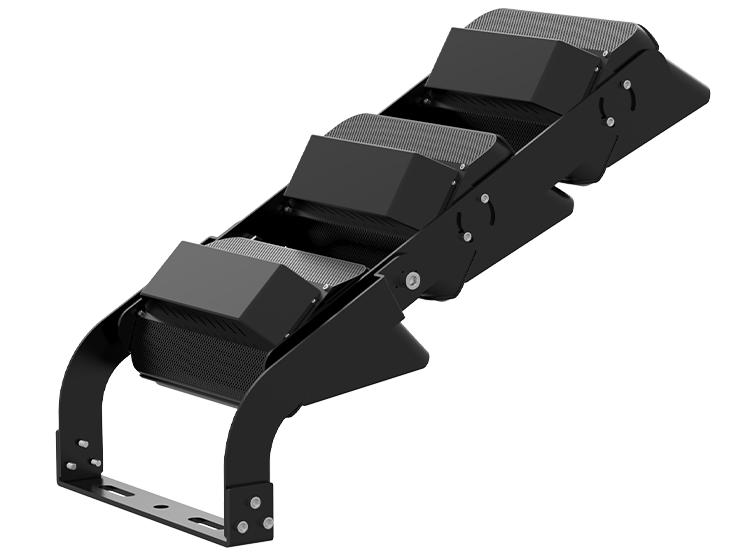

Rotatable Modular Design

Each module can be rotated vertically 40 degree , bring you more flexible lighting solutions and more precise target lighting.

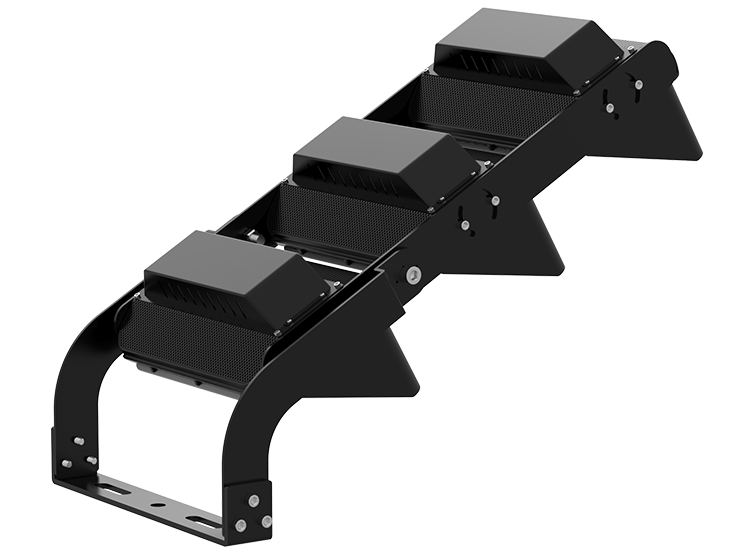

Protection Mesh Cover on Back

Keep the lamp always clean from the bird droppings or leaves, avoid the birds build the nests on lamp. The perfect heat dissipation performance on lamp will be ensured at the same time.

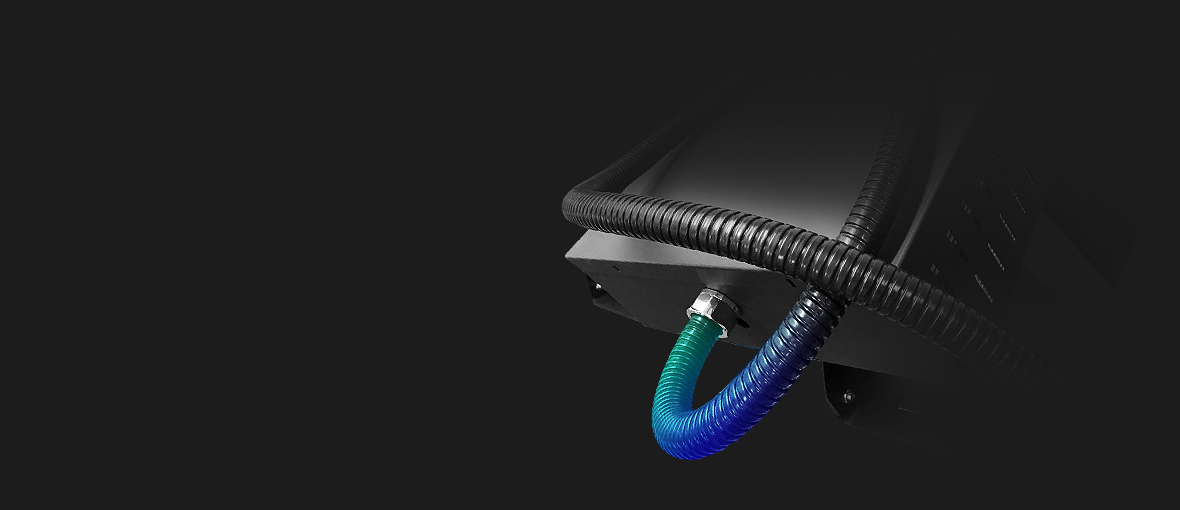

Stainless Steel Conduit

Protect the cable from any potential damage , like bird, rugged weather etc.

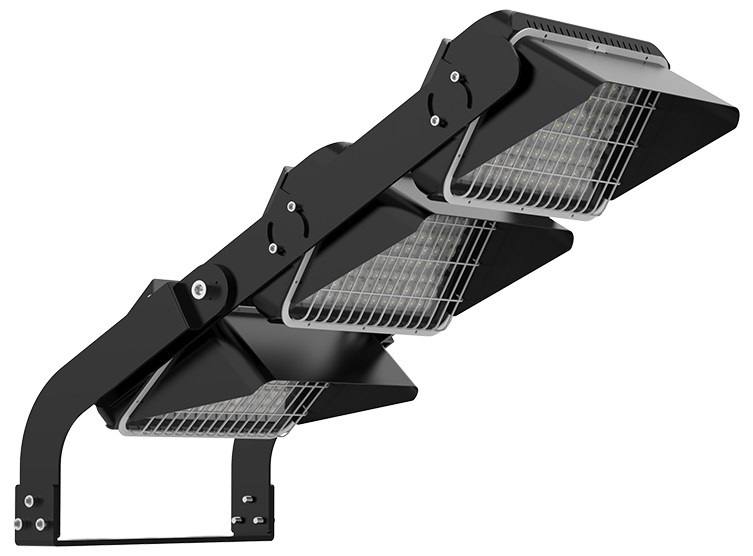

Light Spill Cover

Reduce the light pollution and glare. Meanwhile a safer lighting solution keeps you away from neighbor’s complaint


High-Definition Broadcasting Standard


High TLCI solution can be offered to meet high-level broadcasting sports event.



DMX Amusement Function

Bring all audience an amazing colorful lighting effect before the match begin. One lamp is enough for the amusement and functional lighting.



  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 120LM/W (with light Spill cover) to 150LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90

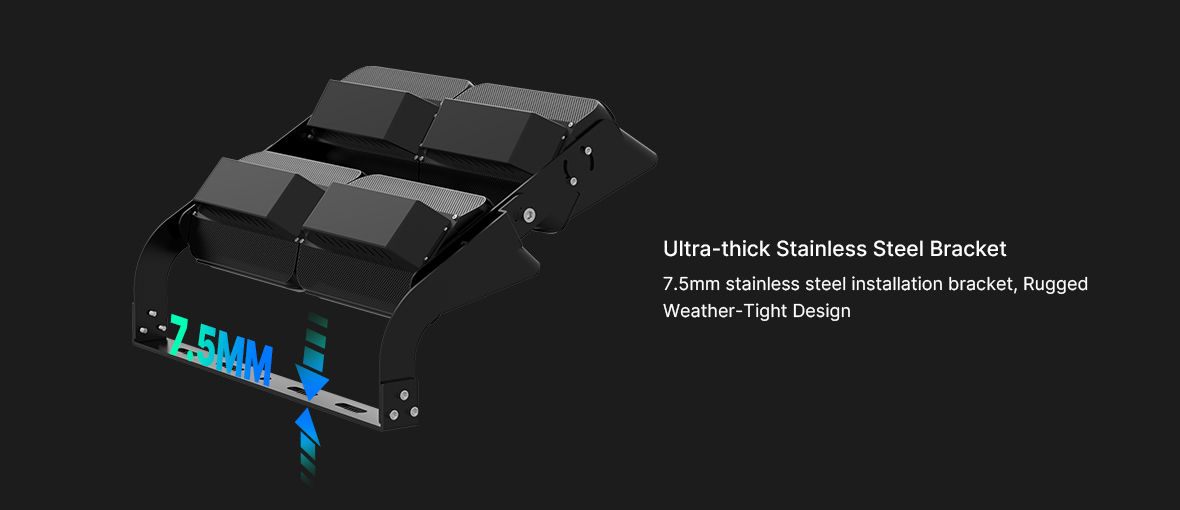

  • Bracket: Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP66
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,Asymmetric 50°
  • IK Rate: IK08
  • Optional Accessories: Light Spill Cover; Protection Shield
  • L70 Hour: >60,000 H
  • Wattage/module: 250w or 300w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
    • 尺寸图(H).png
Model SG-BA-H600W SG-BA-H900W SG-BA-H1200W SG-BA-H1800W
Model Qty 2 3 4 5
Power 600W 900W 1200W 1800W
Lumen Output 90000LM 130500LM 174000LM 261000LM
