Your Location: Index LED SPORTS LIGHTING
HAWK SERIES 720W

Hawk Series is the 1st generation of our all-direction rotatable sports light. Classic never goes out of date! We did a lot of updates and optimizations on it based on years of sales experience, its biggest advantage will be obviously shown on those small sports fields which need high uniformity



  • From 480W to 1440W

  • Light Weight with fin-style Aluminum heatsink

  • Precise target lighting with the rotatable modular design

  • Glare Control with light spill cover

  • Class 17 wind load resistance

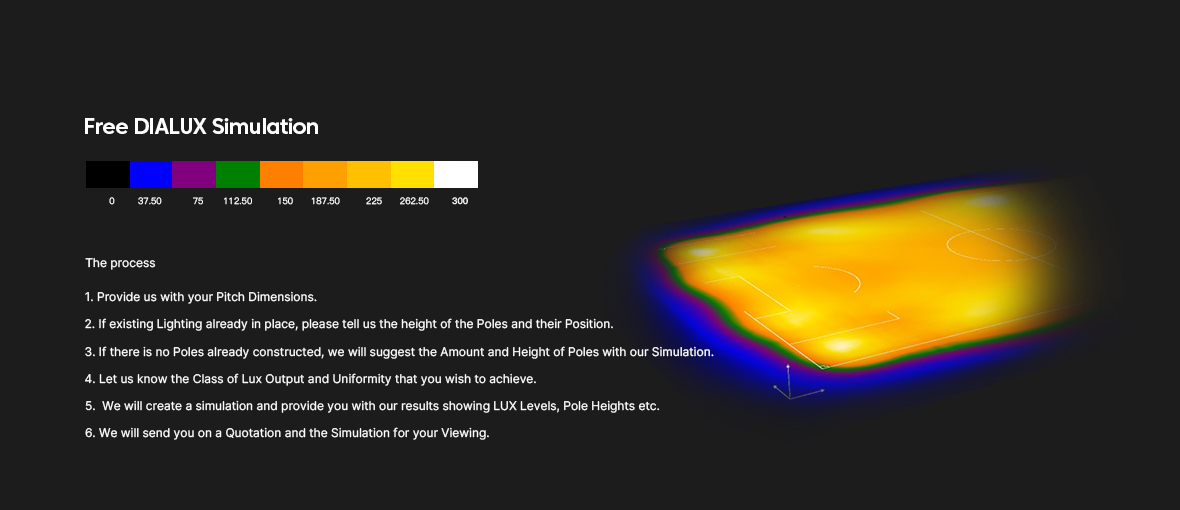

  • Free Dialux Simulations

  • Broadcast standard TLCI>90

  • Smart Wireless Control

  • Detachable driver box

  • Quick connection plug


SEND INQUIRY
Features
Parameters
Download

Finlike heatsink provides perfect heat dissipation


360°+150° Rotatable

Vertically & horizontally rotatable modules

Laser Pen

Laser technology for precise light targeting

  • Input Voltage: AC90-305V/AC108-528V
  • Lumen Efficiency: 145LM/W to 150LM/W
  • LED Brand: Lumileds 5050
  • Housing: Aluminum
  • CRI: 70 80 90
  • Bracket: Iron or Stainless Steel
  • Operating Temp: -40℃ to 55℃
  • Driver: Meanwell, Sosen, Inventronics
  • Power Factor: >0.95
  • Dimming Solutions: 0-10v Dimming, DALI, CLO
  • Warranty : 5 yrs warranty
  • CCT: 3000K 4000K 5000K 5700K 6500K
  • IP Rate: IP65
  • Wireless Control: Available
  • Driver Box: Detachable
  • Beam Angle: 20°,40°, 60°,90°,h140*v100
  • L70 Hour: >60,000 H
  • Wattage/module: 100w or 120w
  • Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)
  • 尺寸图(HWAK).png
Model SG-HK600W SG-HK800W SG-HK1000W SG-HK1200W
Model Qty 6 8 10 12
Power 600/720W 800/960W 1000/1200W 1200/1440W
Lumen Output 90000-108000LM 120000-144000LM 150000-180000LM 180000-216000LM
