HAWK SERIES 1200W

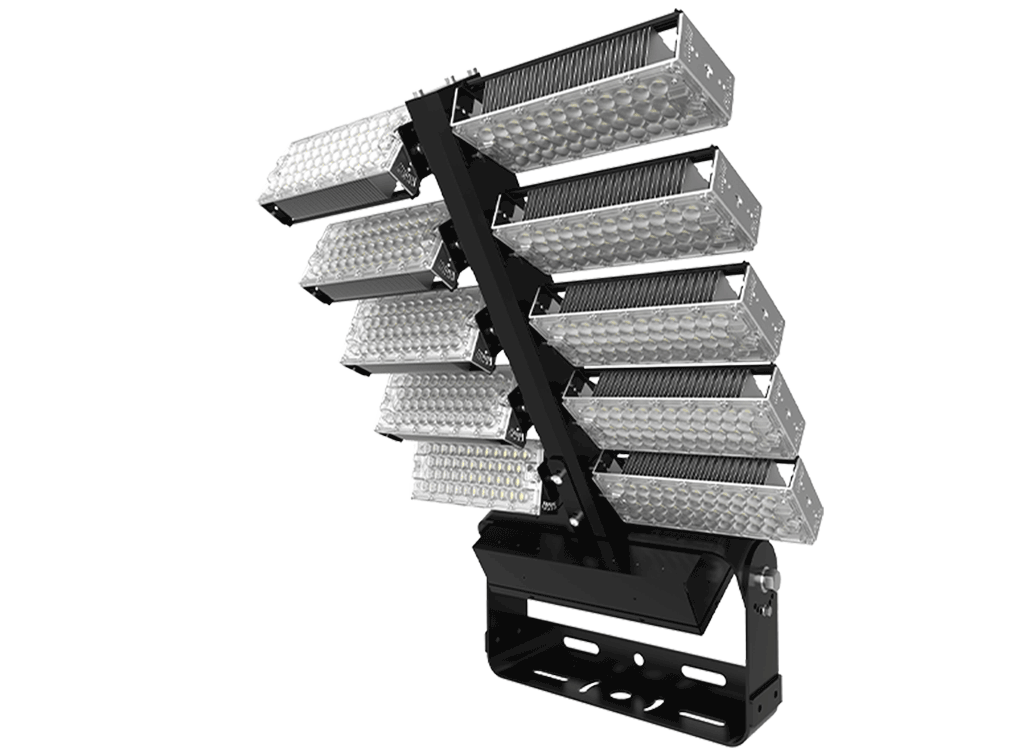

Hawk Series is the 1st generation of our all-direction rotatable sports light. Classic never goes out of date! We did a lot of updates and optimizations on it based on years of sales experience, its biggest advantage will be obviously shown on those small sports fields which need high uniformity

From 480W to 1440W
Light Weight with fin-style Aluminum heatsink
Precise target lighting with the rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulations
Broadcast standard TLCI＞90
Smart Wireless Control
Detachable driver box
Quick connection plug

SEND INQUIRY

Features

Parameters

Download

Finlike heatsink provides perfect heat dissipation

360°+150° Rotatable

Vertically & horizontally rotatable modules

Laser Pen

Laser technology for precise light targeting

Input Voltage: AC90-305V/AC108-528V
Lumen Efficiency: 145LM/W to 150LM/W
LED Brand: Lumileds 5050
Housing: Aluminum
CRI: 70 80 90
Bracket: Iron or Stainless Steel
Operating Temp: -40℃ to 55℃
Driver: Meanwell, Sosen, Inventronics
Power Factor: >0.95
Dimming Solutions: 0-10v Dimming, DALI, CLO
Warranty : 5 yrs warranty
CCT: 3000K 4000K 5000K 5700K 6500K
IP Rate: IP65
Wireless Control: Available
Driver Box: Detachable
Beam Angle: 20°,40°, 60°,90°,h140*v100
L70 Hour: >60,000 H
Wattage/module: 100w or 120w
Wind Load: Can stand 17 Class Wind load (56.1~61.2 m/s)

Model	SG-HK600W	SG-HK800W	SG-HK1000W	SG-HK1200W
Model Qty	6	8	10	12
Power	600/720W	800/960W	1000/1200W	1200/1440W
Lumen Output	90000-108000LM	120000-144000LM	150000-180000LM	180000-216000LM
